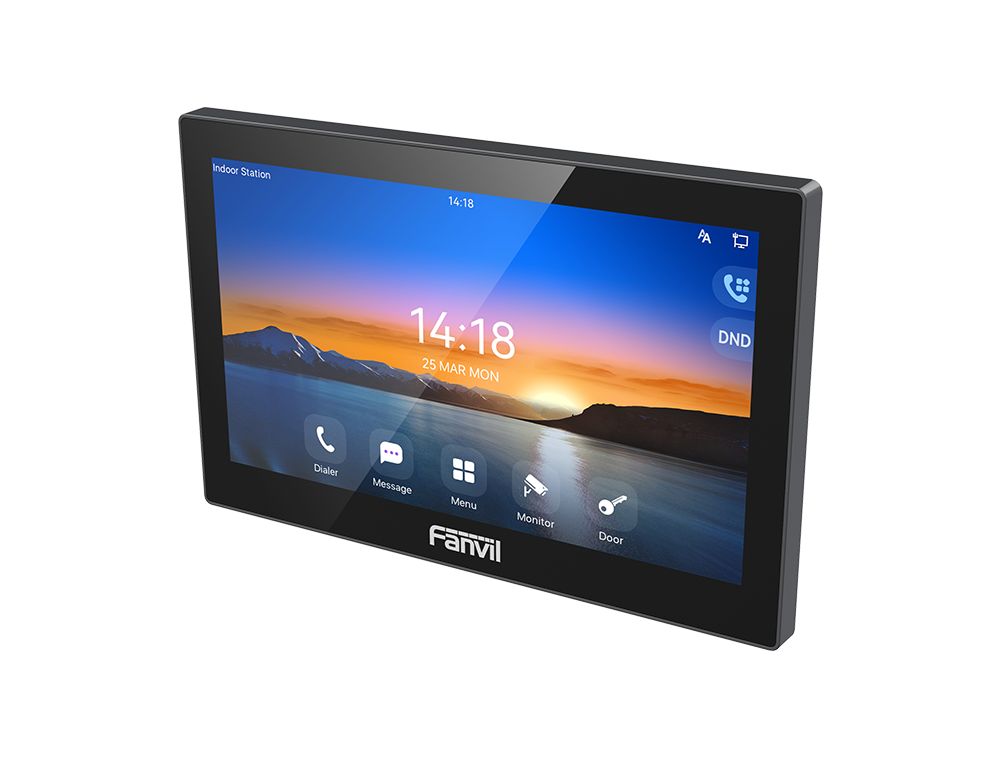

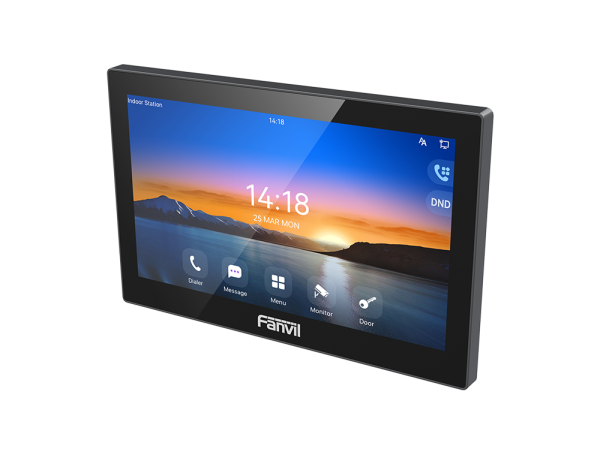

The i504/i504W is a 7-inch touch screen indoor station, featuring a stylish design and intuitive UI. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.
Specifications
Panel type Community, Hotel, Villa
Screen 7-inch color capacitive touch screen 1024×600
Body ABS
Speaker 2W
Wi-Fi 2.4G/5G（i504W Supported）
Interface 8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485(Reserved)
Network 10/100 Mbps adaptive
Power Supply
DC 12V / 1A
PoE 802.3af
Power Consumption
PoE: 3.65~6.64W
Adapter: 2.71~5.53W
Working Temperature -10℃~50℃
Storage Temperature -40℃~80℃
Working Humidity 10%~90%
Size (LWH) 177.38×113.99×22.5mm
Installation Wall-mounted
Functional Capabilities
Supported Protocols SIP 2.0 over UDP/TCP/TLS
Audio
Narrowband audio codec: G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLBCBroadband audio codec: G.722, OPUS
Full-duplex hands-free calling, supports Acoustic Echo Cancellation (AEC)
Video
Hardware video decoding: H.264，H.265 (Opention)
Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
DTMF In-band, out-of-band DTMF (RFC2833), SIP Info
Do Not Disturb (DND) Supported, and the time can be user-defined
Additionally
Supports viewing video from third-party IP cameras
Supports customizing incoming call ringtones
Supports remote door unlocking
Supports sending/receiving messages
