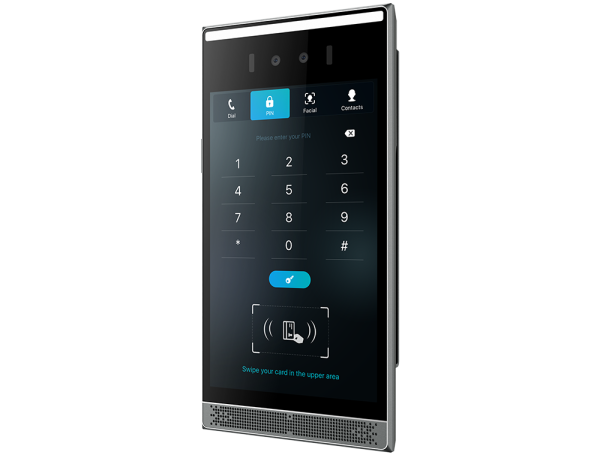

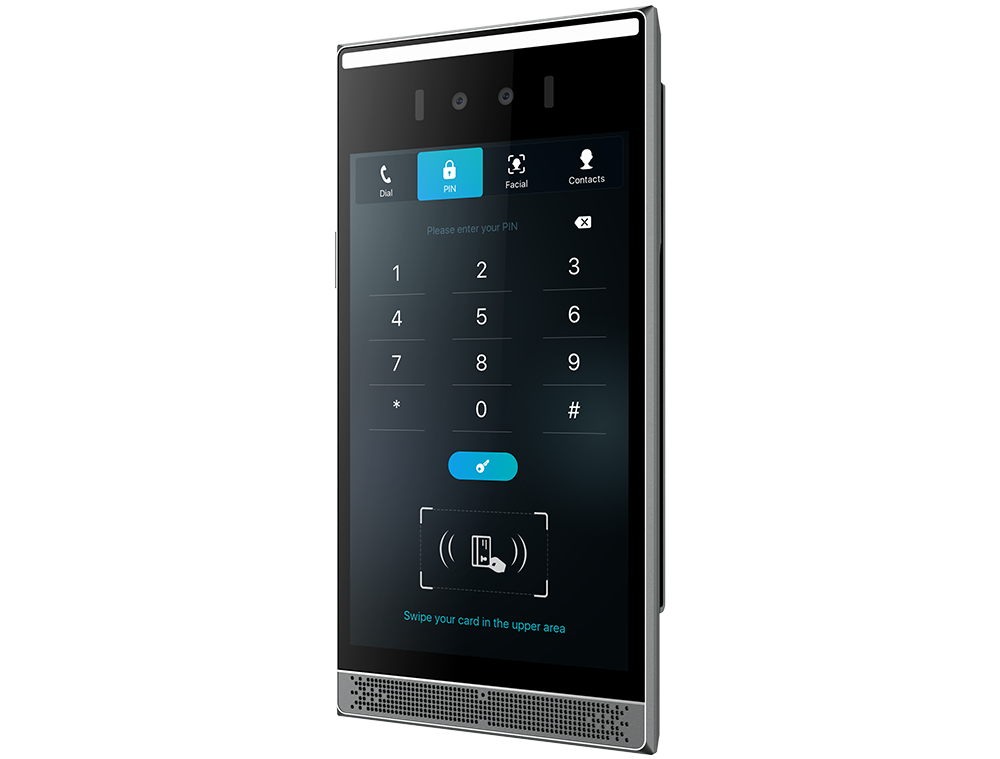

The i68 face recognition door phone is equipped with a 8-inch IPS touch screen and incorporates high-precision face
recognition technology. It features anti-spoofing liveness detection for images, videos, and masks, maximizing community
security. Additionally, it supports audio and video communication with IP phones, indoor stations, or via a mobile app. With
multiple door-opening methods, it is widely applicable in community, apartment, and office building scenarios.
Specifications
Panel Type Multi-apartment，Community，Hotel
Screen/Keyboard 8-inch 800×1280 touch screen
Body Aluminum
Colors Gunmetal
Sensor 1/2.8-inch
Camera 2 Mpx ×2 (Automatic lighting)
Viewing Angle 62°(Horizontal) 37.4°(Vertical)
Output video H.264 (Baseline,Main Profile)
Light Sensitivity 0.1Lux
Card Storage 1,0000
Face Storage 1,0000
Power Consumption
PoE: 7.9~23.1W
Adapter: 6.8~21.5W
Power Supply
DC 12V / 2A (If not using POE+)
POE 802.3at Class 4
Working Temperature -20℃~+55℃
Storage temperature -40℃~+70℃
Size of the Panel (LHW) 123.8×20.5×240 mm
IP / IK Level IP66 / IK07
Installation Wall-mounted
Functional Capabilities
Supported Protocols SIP 2.0 over UDP/TCP/TLS
Lock Opening Face Recognition，IC/ID Card，PIN Code
QR Code，By DTMF Code，Remote door opening, BLE
Interface Wiegand Input/Output
Short Circuit Input/Output
Supported Wiegand 26, 34 bit
Supported ONVIF Types Profile S
Supported Standards
Mifare Classic 1K/4K，Mifare DESFire，Mifare Ultralight，Mifare Plus
Cards 13.56 MHz，Cards 125 kHz
Talking Mode Full duplex (High-definition Audio)
Additionally Built-in relay，Open API，Motion detection，Tamper Alarm (gravity sensing)，Smart noise reduction
