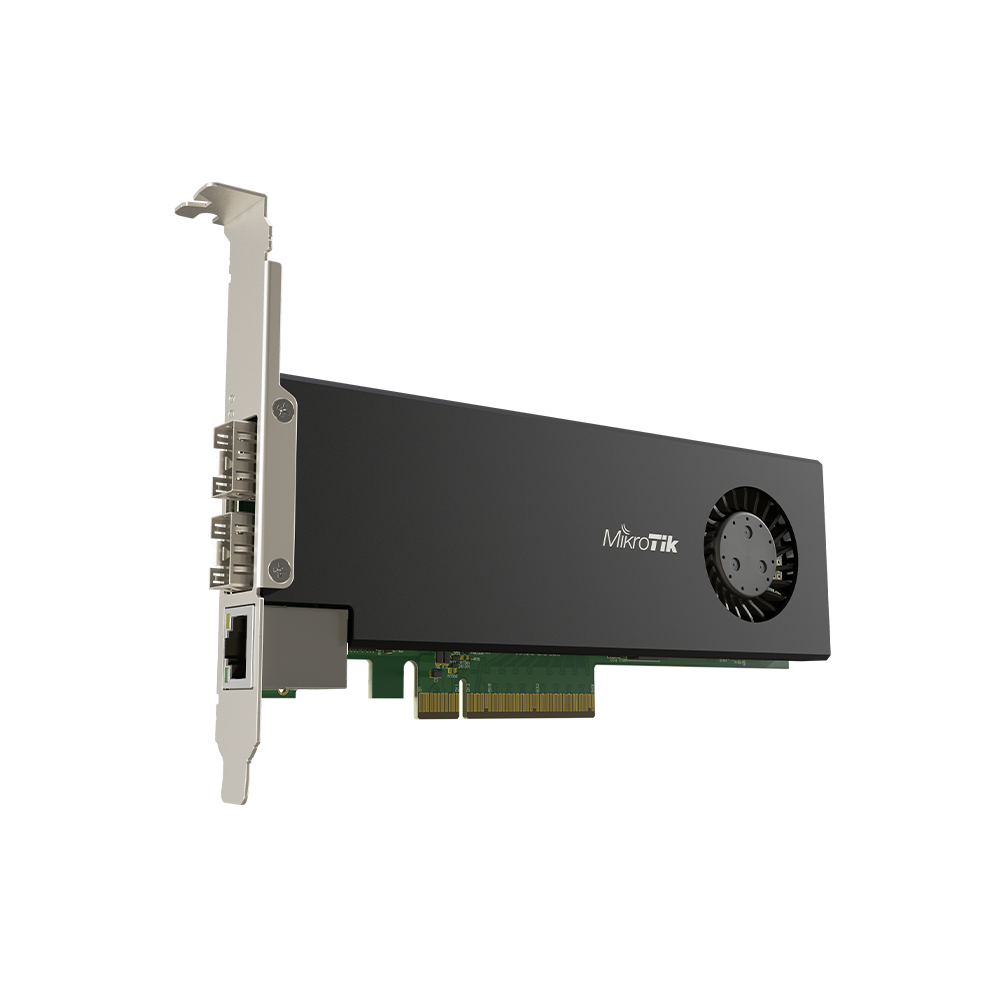

CCR2004-1G-2XS-PCIe
CCR2004-1G-2XS-PCIe
226.29 € (Cenata e so DDV)
Save space in your server room by adding a real CCR2004.. within the server itself! This unique product combines a simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities of a fully-fledged router.
By default, the PCIe interface will show up as four virtual Ethernet interfaces. Two interfaces in passthrough mode to the 25G SFP28 cages. Remaining two virtual Ethernet-PCIe interfaces are bridged with the Gigabit Ethernet port for management access. The user can configure all interfaces and settings freely since we are running fully functional RouterOS here.
Specifications
| Details | |
|---|---|
| Product code | CCR2004-1G-2XS-PCIe |
| Architecture | ARM 64bit |
| CPU | AL52400 |
| CPU core count | 4 |
| CPU nominal frequency | 1500 MHz |
| Dimensions | 170 x 69 x 18 mm |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Max power consumption | 29 W |
| Max power consumption without attachments | 22 W |
| Cooling type | 1 fan |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| Number of 25G SFP28 ports | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
