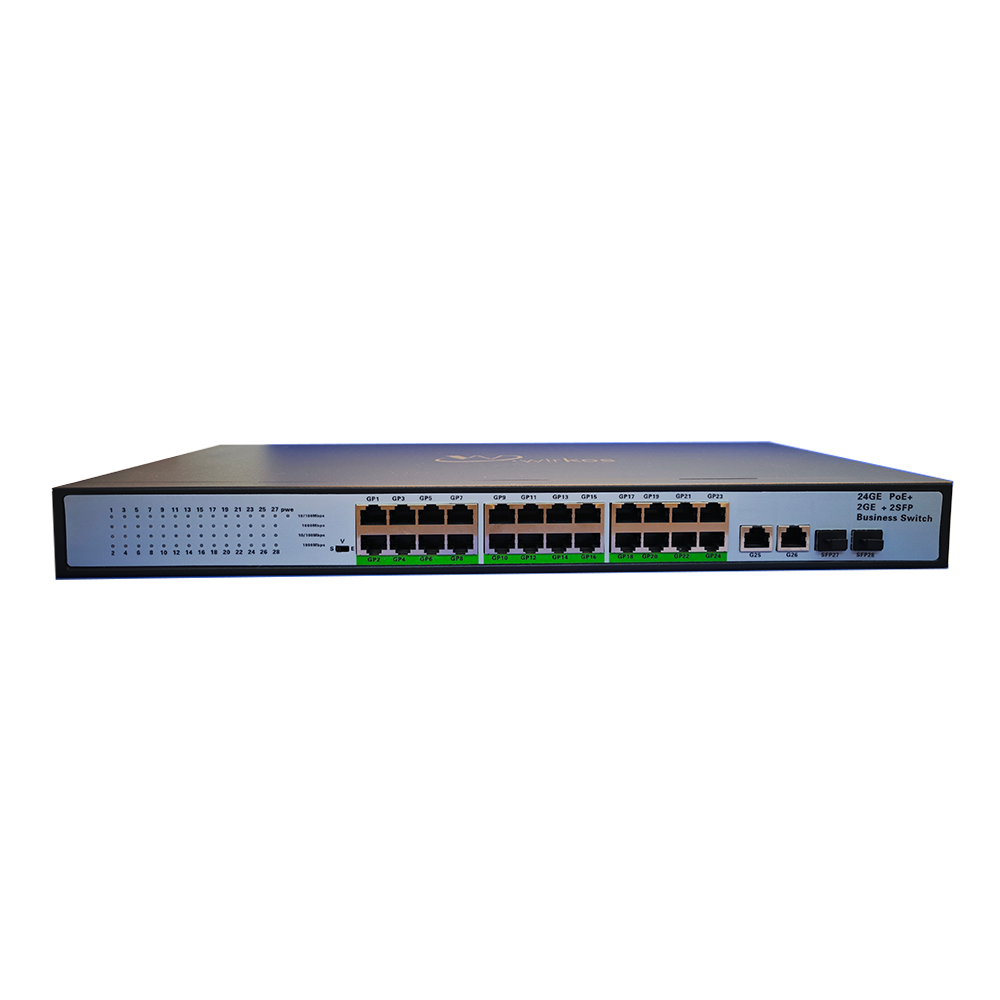

POE Switch/24+2+2/Full Gigabit
WKPOE-FG-2422
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 24 Port: 10/100M/1000 auto sensing RJ45 port. 2 Port: 10/100/1000M auto sensing RJ45 2 Port: 10/100/1000M auto sensing SFP port.
- Support port auto-flip (Auto MDI/ MDIX)
- Total PoE Power: 400W (Port 1 – 24 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-24: 10/100M/1000 auto-sensing. @100 meters; Port 25-26: 1000M @ 100 meters
- Store and forward
- Fanless design, natural Mini size.
Опис
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Product Model: WKPOE-FG-2422
Product Description: 24x 10/100M/1000 copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 2x1000M SFP Ports. standard PoE Switch. Port 1-24 support PoE function with port isolation function. IEEE802.3af/at, max PoE power output is 30W. Total power is 400W. supports Vlan. Built-in power supply.
Note: PoE Power Supply：1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)
