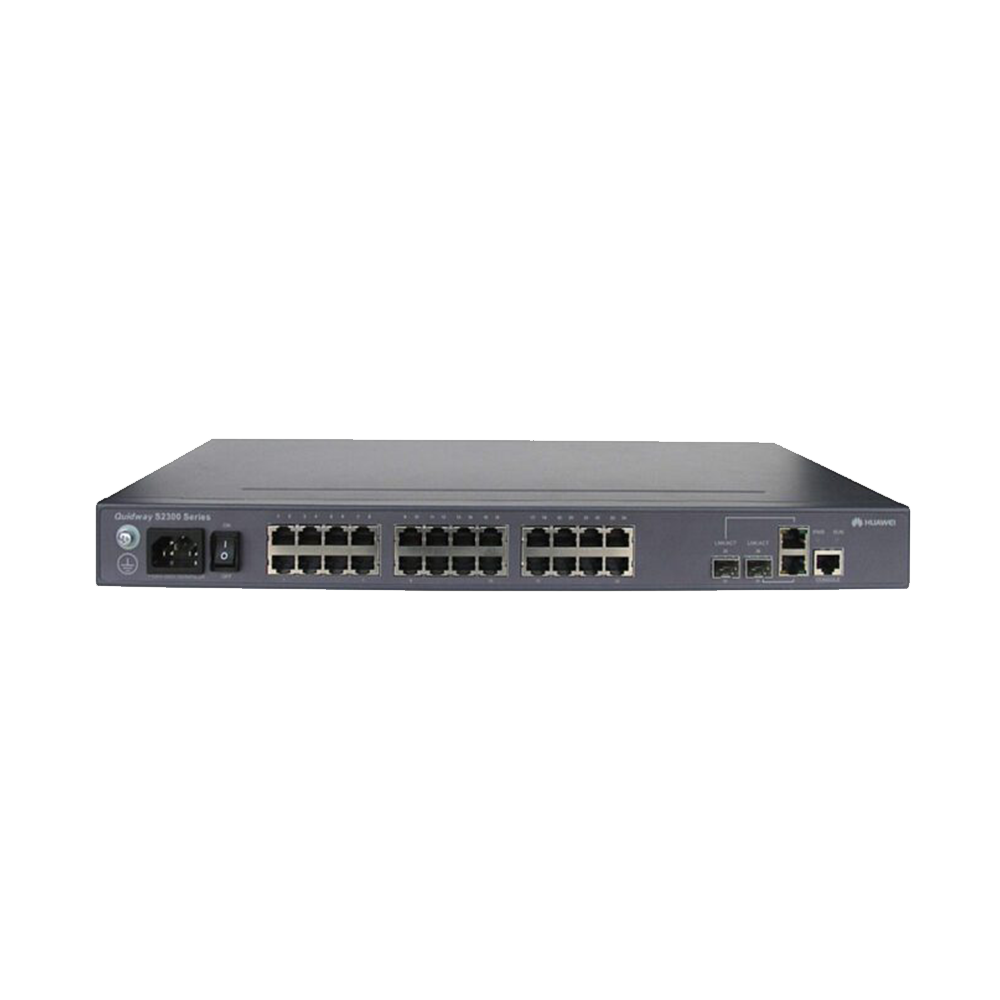

Huawei switch LS-S2318TP-SI-AC
S2318TP-SI Mainframe(16 10/100 BASE-T ports and 2 Combo GE(10/100/1000 BASE-T 100/1000 Base-X) ports and AC 110/220V)
Опис
| Product Code | LS-S2318TP-SI-AC |
| Fixed Ports | sixteen 10/100Base-TX ports and two gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X) |
| Forwarding performance | 5.4 Mpps |
| Port switching capacity | 7.2 Gbit/s |
| Backplane switching capacity | 32 Gbit/s |
| Power supplies | AC:
Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz |
| POE | Non-POE Switch |
| Software | Standard Version |
| Power consumption | 14.5 W |
| Dimensions: width x depth x height | 442 mm x 220 mm x 43.6 mm |
| Weight | 2.4 kg |
