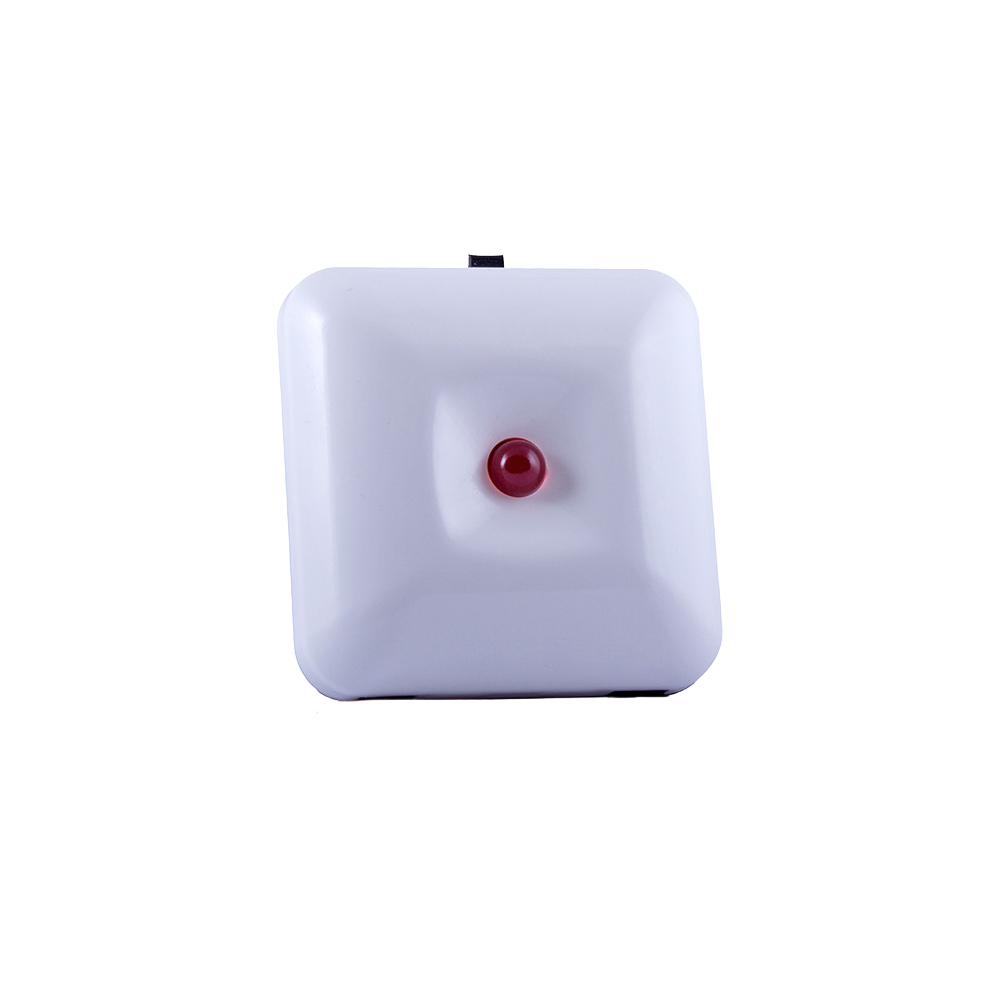

RI9000 – Remote indicator

The remote indicator is designed to duplicate the fire alarm signal from a fire detector as well as to duplicate indications from executive devices and signaling.

• Supply voltage: 9-28 V DC
• Current in alarm: 40 mA / 24V DC
• Indicator color: Red
• Type of connecting line: Two-wire
• Sequential resistor: 560Ω / 0.6W
• Dimensions: (75x75x22) mm
• Mass: 0.04 kg
