● AC1200 Dual Band Wi-Fi
● MT7621DAT MT7613B MT7603E
● 1× Gigabit WAN/LAN
● 1× WPS Button
● 1× Reset Button
● 802.3at/af PoE or Passive PoE
● MU-MIMO/OFDMA
● Fat/Fit AP mode
● IP65 WaterProof
● Mesh
Wireless for business, Wireless for home and office, Wireless Routers - CUDY

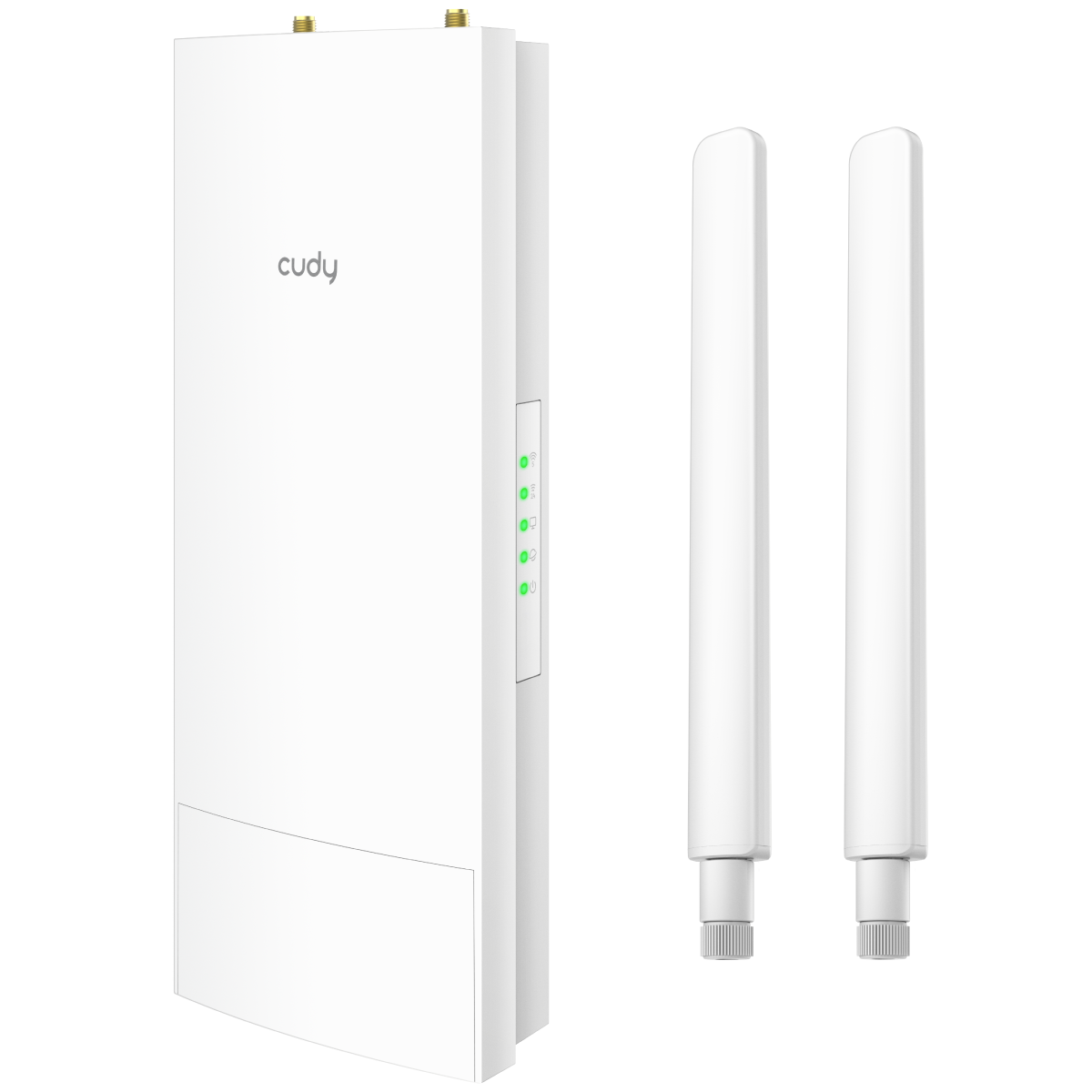

Outdoor AC1200 Gigabit Wireless Access Point (AP1300 Outdoor)
AP1300 Outdoor
60.22 € (Cenata e so DDV)
Compare| Hardware Features | Highlights | CPU: 880 MHz Dual-Core Processor |
| Flash: 16 MB (128 Mbit) | ||
| DDR: 128 MB (1 Gbit) | ||
| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support IEEE802.3af PoE and Passive PoE) | |
| 1× Reset Button | ||
| Power Supply | 802.3af/at PoE | |
| 24-57 V Passive PoE ( 4,5pins; -7,8pins) | ||
| Dimensions ( W×D×H ) | AP Body: 240×100×53.7 mm Antennas: 197.5×21.6×15.5 mmHeight of AP with Antennas installed: 438 mm |
|
| Antenna Type | 2× Detachable Omni-directional Antennas | |
| Mounting | Pole/Wall Mounting (Kits included) | |
| Wireless Function | Wireless Standard: | Wi-Fi 5 (802.11ac/n/g/b/a) |
| Frequency: | 5 GHz, 2.4 GHz | |
| Signal Rate: | 5 GHz: Up to 867 Mbps | |
| 2.4 GHz: Up to 300 Mbps | ||
| Bandwidth | 20/40/80 MHz | |
| Wireless Functions | Multiple SSID | |
| Enable/Disable Wireless Radio | ||
| Transmit Power Control | ||
| QoS (WMM) | ||
| Mesh (Requires a Cudy Mesh unit/Mesh router/AC as the gateway with firmware newer than 15.28) | ||
| Band Steering | ||
| MU-MIMO | ||
| Beamforming | ||
| Rate Limit | ||
| Reboot Schedule | ||
| Wireless Schedule | ||
| Wireless Encryption | WPA-PSK | |
| WPA2-PSK | ||
| WPA-PSK/WPA2-PSK | ||
| Security | Access Control | |
| Mac Filtering | ||
| Wireless Isolation Clients | ||
| Weather-Proof | Water-Proof | IP65 (Protection against any dust and low-pressure water from any directions) |
| Lightning Protection | 4 KV Lightning/Surge protection at the Ethernet port | |
| Operating Mode | Access Point Mode | |
| Router Mode | ||
| RE Mode | ||
| WISP Mode | ||
| Package Contents | Outdoor Wireless Access Point | |
| 2× Detahcable Wi-Fi Antennas | ||
| 48 V / 0.3 A Passive PoE Adapter | ||
| Mounting Kits | ||
| Installation Guide | ||
| Environment | Operating Temperature: -20~60 °C (-10~140°F) | |
| Storage Temperature: -40–70 °C (-40–158 °F) | ||
| Operating Humidity: 10–90% RH non-condensing | ||
| Storage Humidity: 5–90% RH non-condensing | ||
| System Requirements | Operating system that supports network/Wi-Fi connectivity, such as Windows, Android, macOS, iOS, or Linux | |
