Managed Switches, PoE Switch, UniFi

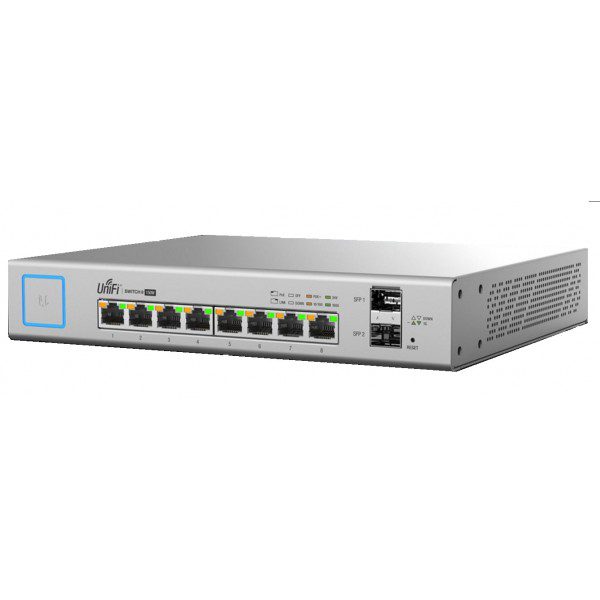

UniFi Switch PoE 8 (150W)
US-8-150W (130W)
294.29 € (Cenata e so DDV)
An 8-port, Layer 2 PoE switch with a fanless cooling system.
(8) GbE PoE+ ports*
(2) 1G SFP ports
130W total PoE availability
| Mechanical | |
|---|---|
| Dimensions | 235 x 43 x 204 mm (9.3 x 1.7 x 8″) |
| Weight | 1.7 kg (3.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (8) PoE/PoE+ 2-pair (Pins +1, 2; -3, 6) 24V DC/0.7A passive PoE 2-pair (Pins +4, 5; -7, 8) |
| Total non-blocking throughput | 10 Gbps |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 150W |
| Max. power consumption | 20W (Excluding PoE output) 150W (Including PoE output) |
| Total available PoE | 130W |
| Max. PoE wattage per port by PSE | PoE: 17W PoE+: 34W |
| Voltage range PoE mode | 24V passive PoE: 20–27V PoE+: 50—57V |
| ESD/EMP protection | Air/contact: ± 24kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | PoE Speed/link/activity |
