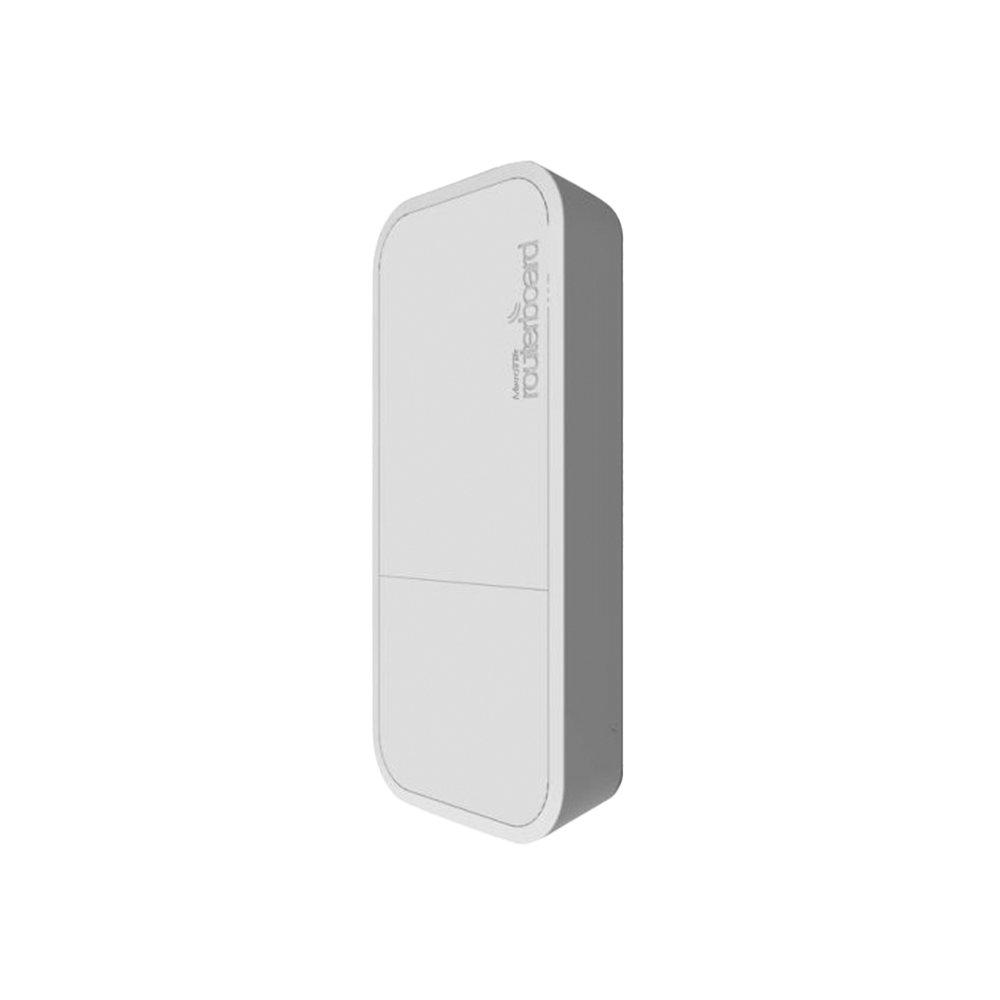

wAP
RBwAP2nD – wAP with 650MHz CPU, 64MB RAM, 1xLAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless with integratedantenna, RouterOS L4, white outdoor enclosure, PSU, PoE injector
The wAP is a small weatherproof wireless access point for your mobile devices – perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.
The device has one 10/100 Ethernet port, it supports 802.11b/g/n wireless standards. It looks unobtrusive and sleek, available in two colours – black (RBwAP2nD-BE) and white (RBwAP2nD).
The wAP is weatherproof and can be fixed to any external wall from the inside of the case – so that it is securely attached to it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.
It is also possible to run the Ethernet cable directly behind the unit, to inside the wall, there is a special opening on the back of the case. This way, the unit doesn’t attract attention and blends into any environment.
Product specifications
| Details | |
|---|---|
| Product code | RBwAP2nD |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless standards | 802.11b/g/n |
| Wireless chip model | QCA9533 |
| Power Jack | 1 |
| PoE in | 802.3at |
| Supported input voltage | 11 V – 57 V |
| Operating System | RouterOS |
| Tested ambient temperature | -40C to 70C |
| License level | 4 |
| Antenna gain DBI | 2 |
| CPU | QCA9533 |
| Max Power consumption | 4W |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
